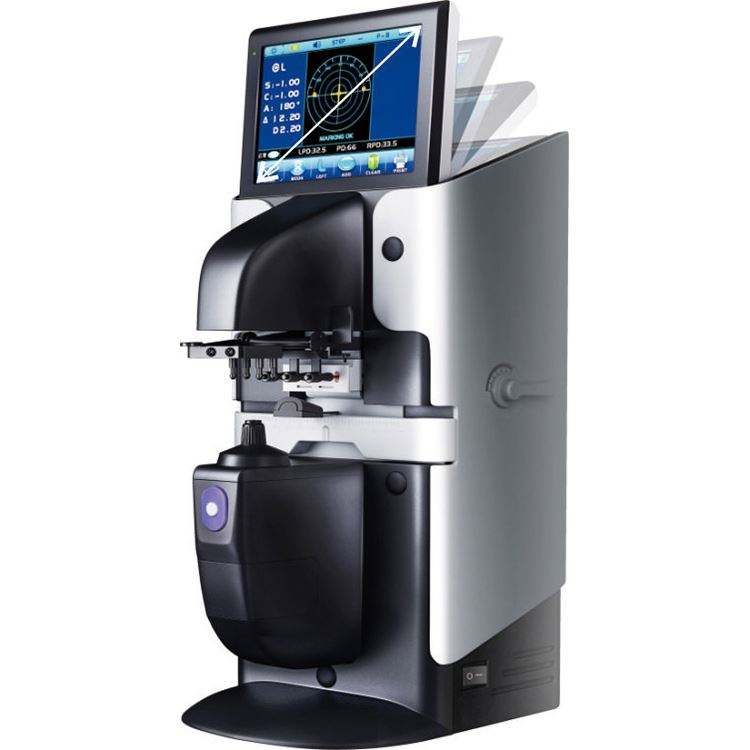

1.Adjustable LCD display screen
Tilt color screen provides you with clear view from any position,such as sitting and standing.
2.Sensitive touch LCD display screen
Just touch the screen can finish your measurement,your operation could be easier and more convenient.
This new generation auto lens meter is based on Hartmann Sensor technology.Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.
3.Measurement screen
Easy to use with reconisable icons.
The JD-2600A provides a user-friendly graphical interface for an immediate understanding.
4. Progressive measurement
A graph helps the operator to improve accuracy and speed in the measurement of near and far vision;
5.Automatic recognition of single and progressive measurement
Automatic measurement of progressive lenses.A graph helps the operator to improve accuracy and speed in the measurement of near and far vision.

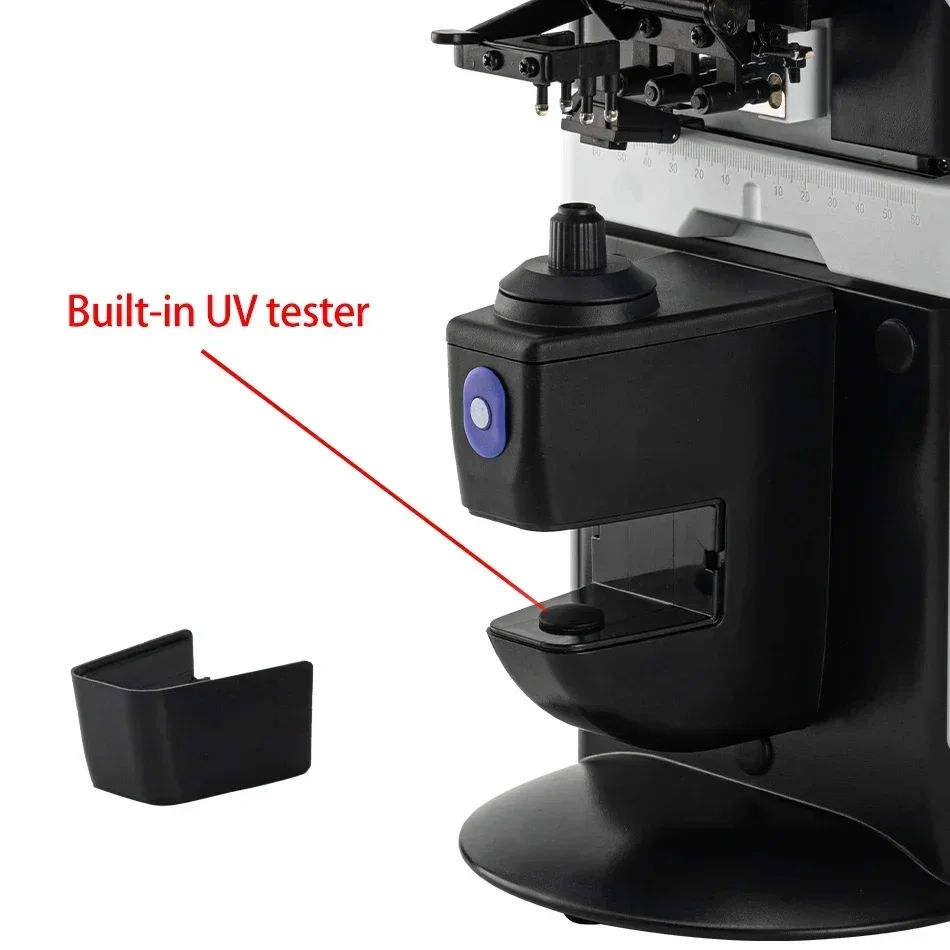

6. Bulit-in UV tester with Hi-speed UV measurement
Just hold the lens through the sensor, the display will easily indicate the UV measurement by the progress bar;
7.Built-in thermal printer
Quick data print with built-in printer.Easy to reload printing paper.
Tilt color screen provides you with clear view from any position,such as sitting and standing.
2.Sensitive touch LCD display screen
Just touch the screen can finish your measurement,your operation could be easier and more convenient.
This new generation auto lens meter is based on Hartmann Sensor technology.Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.
3.Measurement screen
Easy to use with reconisable icons.
The JD-2600A provides a user-friendly graphical interface for an immediate understanding.
4. Progressive measurement
A graph helps the operator to improve accuracy and speed in the measurement of near and far vision;
5.Automatic recognition of single and progressive measurement
Automatic measurement of progressive lenses.A graph helps the operator to improve accuracy and speed in the measurement of near and far vision.
6. Bulit-in UV tester with Hi-speed UV measurement
Just hold the lens through the sensor, the display will easily indicate the UV measurement by the progress bar;
7.Built-in thermal printer
Quick data print with built-in printer.Easy to reload printing paper.
|

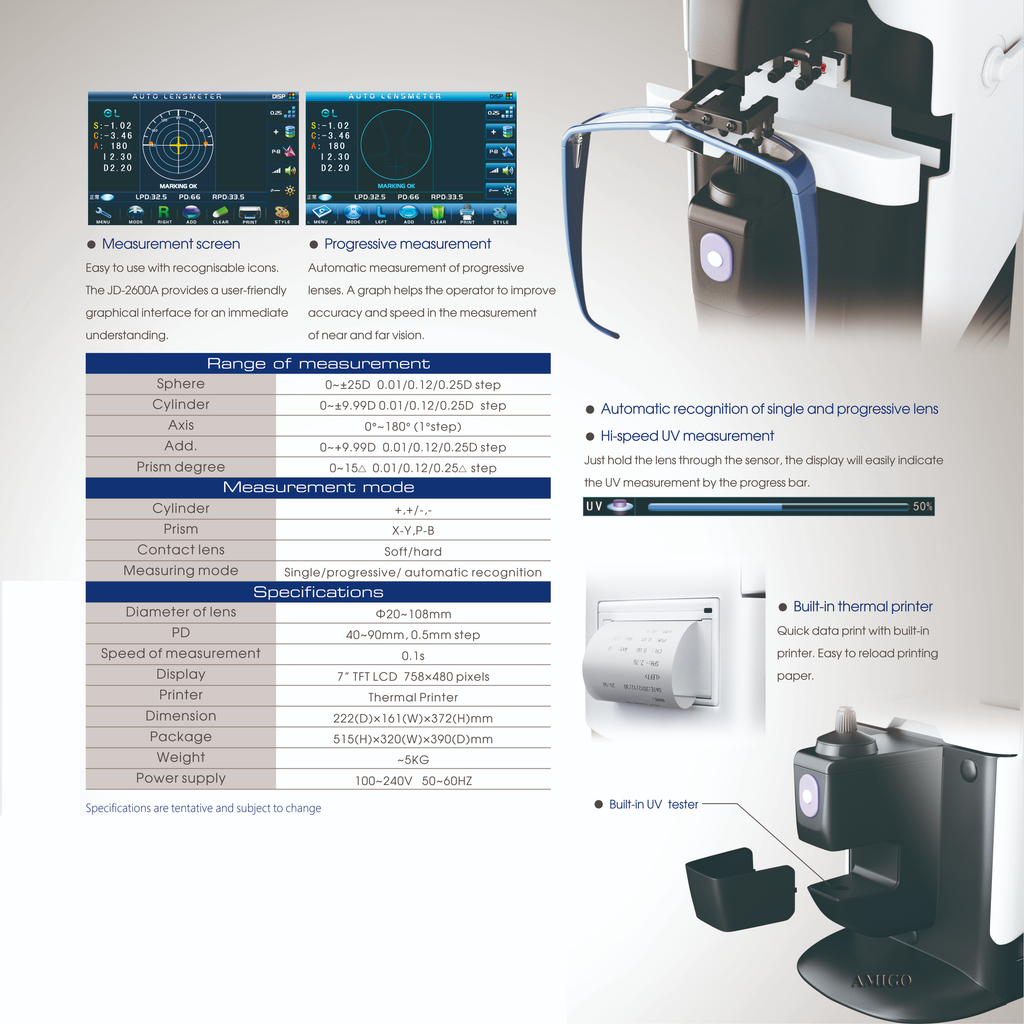

Range of measurement
|
|
|
Sphere
|
0~+- 25D, 0.01/0.12/0.25D step;
|
|
Cylinder
|
0~ +-9.99 D 0.01/0.12/0.25D step.
|
|
Axis
|
0-180 ° (1 ° step)
|
|
Add.
|
0-9.99 D 0.01/0.12/0.25D step.
|
|
Prism degree
|
0-15 D 0.01/0.12/0.25D step.
|
|
Measurement mode
|
|
|
Cylinder
|
+, +/-, -
|
|
Prism
|
X-Y, P-B
|
|
Contact Lens
|
soft/hard;
|
|
Measuring mode
|
Single/progressive/automatic recognition
|
|
Specifications
|
|
|
Diameter of lens
|
20-108mm;
|
|
PD
|
40-90mm, 0.5mm step;
|
|
Speed of measurement
|
0.1s
|
|
Display
|
JD-2600A: 7'' TFT LCD
|
|
Printer
|
Thermal Printer
|
|
Weight
|
5.5kg
|
|
Power supply
|
100-240V, 50-60HZ
|
