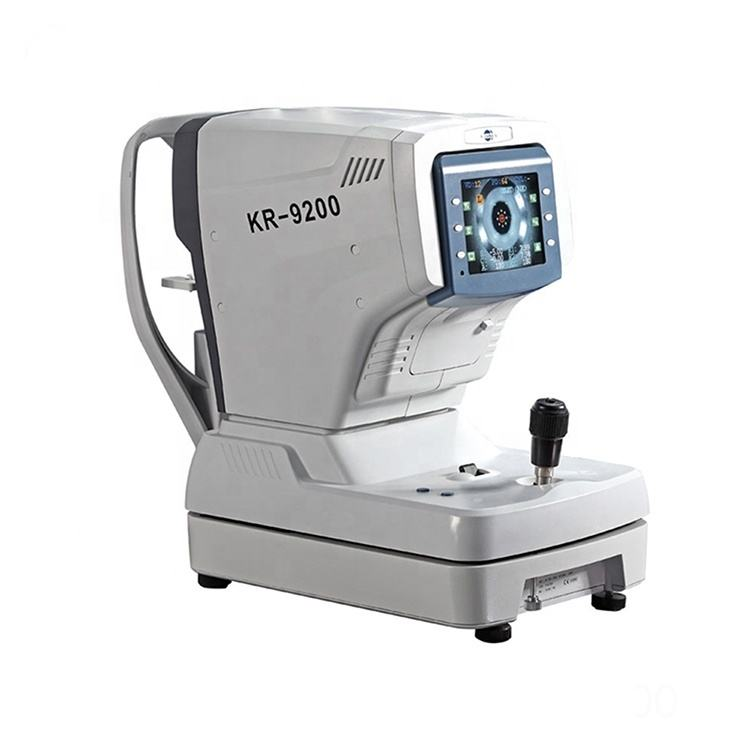

Auto tracking optical system
Use the ARM processor and the latest domestic image processing, the system is fast and the image is clear.
Japan's mature optical path system, , humanized automatic mist measurement process , to reduce the error caused by adjustment, more precise measurements.
Light rack with integral casting , CNC machining, measuring system, is more stable , good consistency.

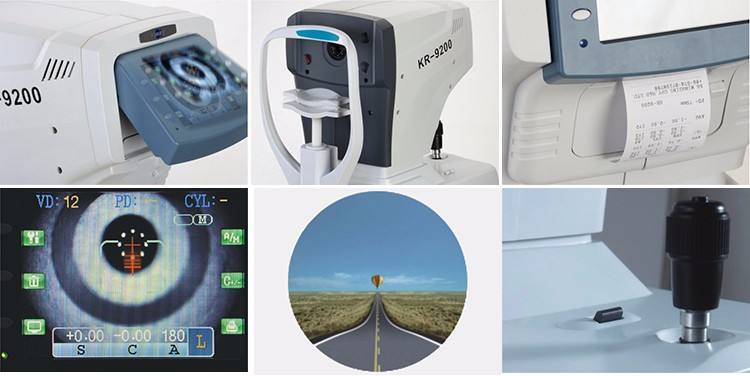

5.7" tiltable color LCD for user friendly operability.
PD Automatic measurement function, automatically PD value.
One key lock function, quickly locking mobile platforms.
Motorized chinrest
Specifications:
|
Model |
KR-9200 |
RM-9200 |
|
|
Refractive measurement |
Vertex Distance |
0,12,13.75,15mm |
|
|
Sphere |
-20~+20D (0.12/0.25D step) |
||
|
Cylinder |
0.00~+-10.00D (0.12/0.25D step) |
||
|
Axis |
1D-180D (1D step) |
||
|
Pupil Distance |
30~85mm |
||
|
Min. Pupil diameter measurable |
2.0mm |
||
|
Target |
Automatic fogging target |
||
|
Corneal curvature measurement |
Radius of curvature |
5~10mm (0.01mm step) |
_ |
|
Corneal Refraction |
30.00~67.00D (0.12/0.25D step) |
||
|
Corneal Astigmatism |
0.00~-15.00D (0.12/0.25D step) |
||
|
Angle of Cornea |
1-180D (1D step) |
||
|
Corneal diameter |
2.0~12.00mm |
||
|
Hardware specification |
Monitor |
5.7 inch Color LCD |
|
|
Printer |
Fast thermal printer |
||
|
Power Saving Function |
OFF, 5/15 mins (Selectable) |
||
|
Power supply |
AC 110~220V, 50/60HZ, 50W |
||
|
Dimensions/weight |
288 (W) * 500(D)*480 (H)mm/ 14kg |
||
