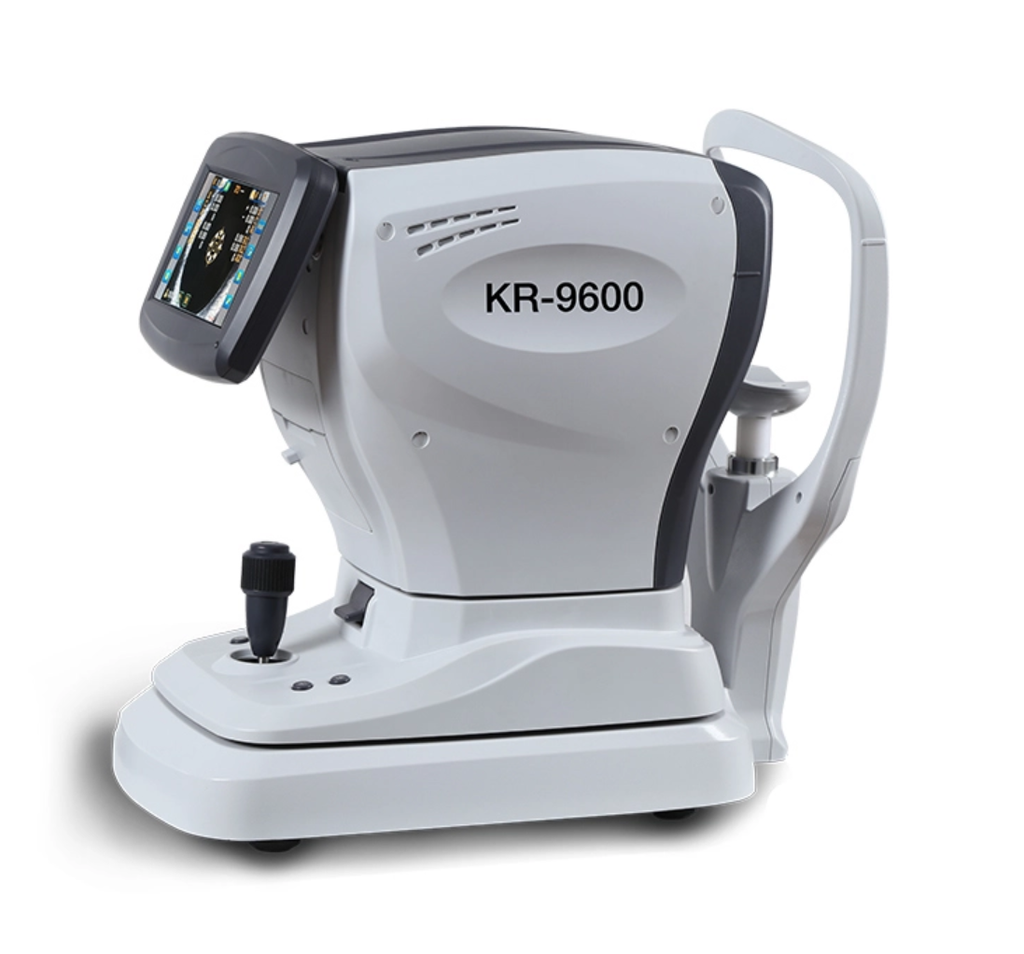

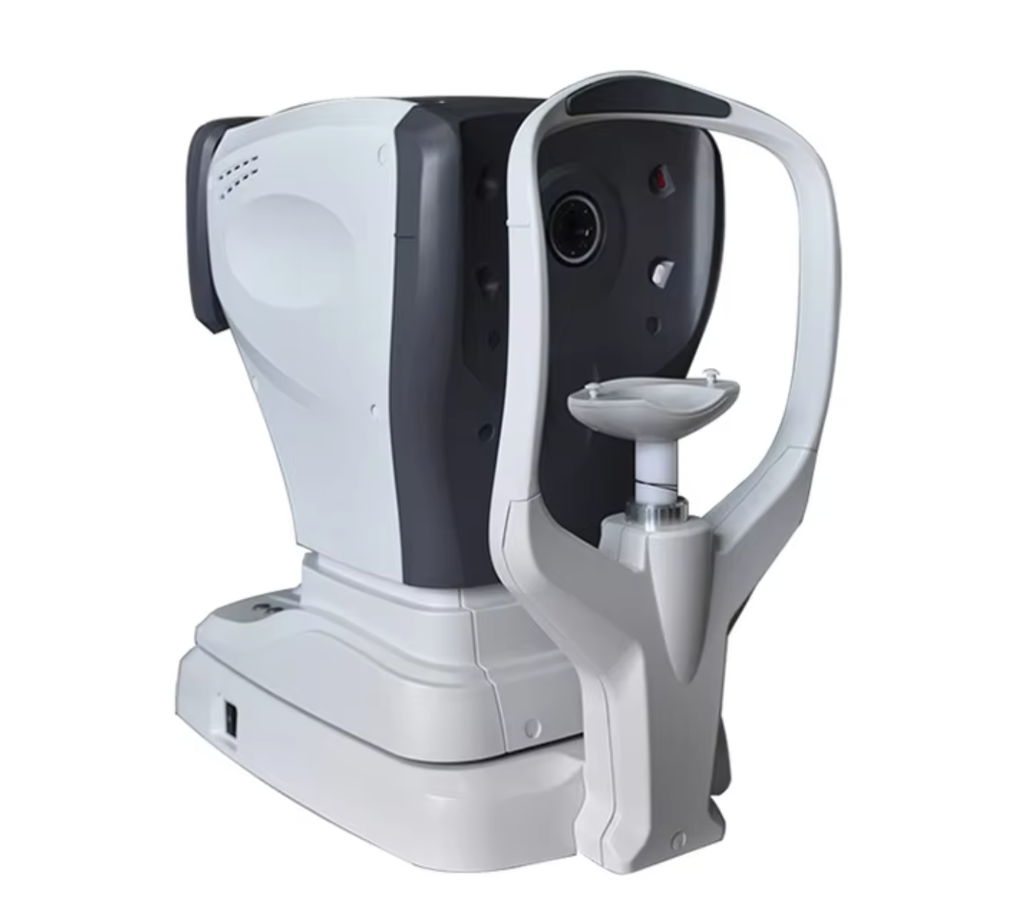

Auto refractometer ARK-9600

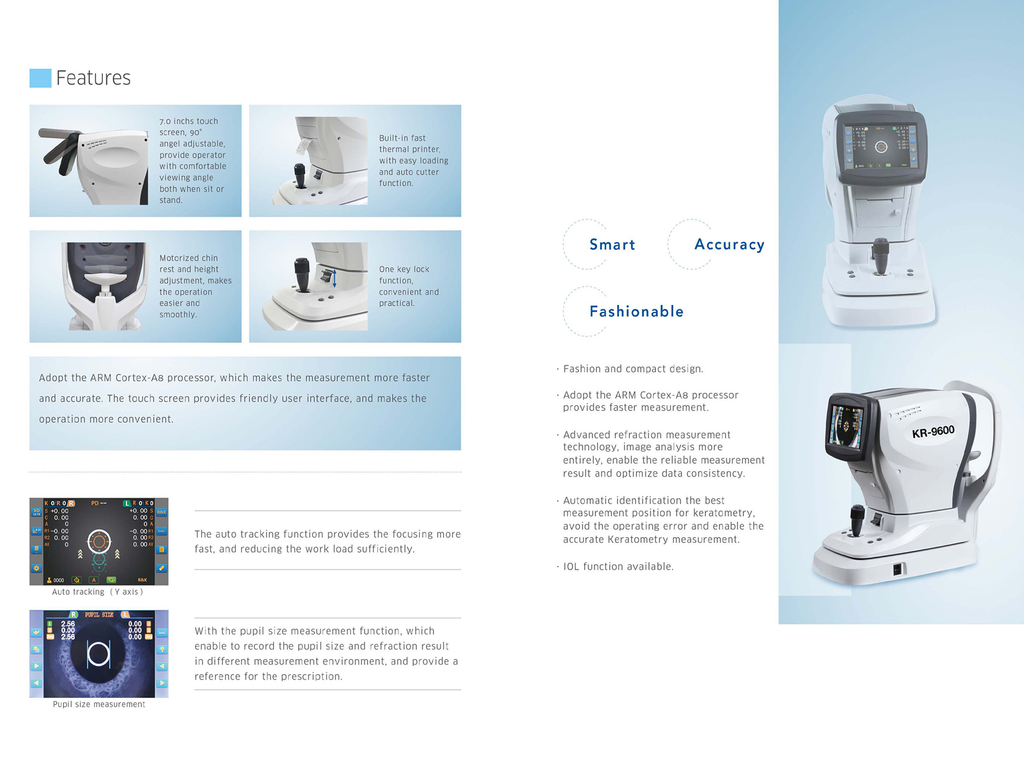

1.7" tiltable color and touch screen.with keratometer function
2.auto detachment printer
3.auto tracking on Y Axis
4.motorized chinrest

5.Motorized joystick

6. One key lock

Specifications

Measurement mode	K/R mode	Refractive and Keratometer measurement.
	REF mode	Refractive measurement
	KEF mode	Corneal curvature measurement
Refractive measurement	Vertex Distance	0.0,12.0,13.75,15.0 mm
	Sphere	-25.00~+22.00D (0.12/0.25D step)(VD=12mm)
	Cylinder	0.00~±10.00D (0.12/0.25D step)
	Axis	1°~180°(1° step)
	Pupil Distance	10~85 mm
	Min. pupil diameter measurable	2.0mm
	Target	Automatic fogging target
Corneal curvature measurement	Radius of curvature	5~10mm(0.01mmstep)
	Corneal Refraction	33.75~67.50D(0.12/0.25Dstep)
	Corneal Astigmatism	0.00~-15.00D(0.12/0.25Dstep)
	Angle of corneal	1°~180°(1°step)
	Corneal diameter	2.0~12.00mm
Hardware specification	Monitor	7 inch Color touch LCD
	Printer	Auto detachment printer
	Power saving function	OFF, 5, 15 mins (selectable)
	Date output Power supply	RS232/Bluetooth AC110~220 V,50/60HZ
	Dimensions/weight	288(W)500(D)480(H)mm/14kg
