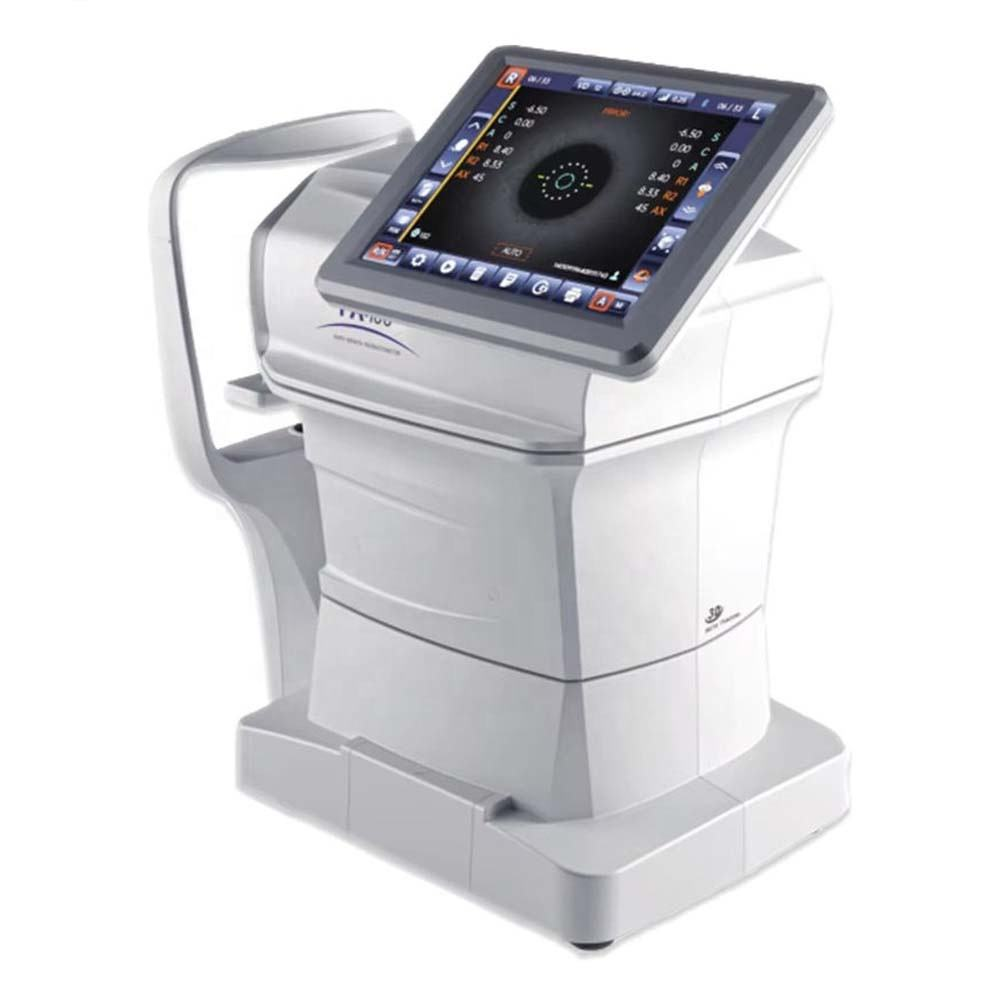

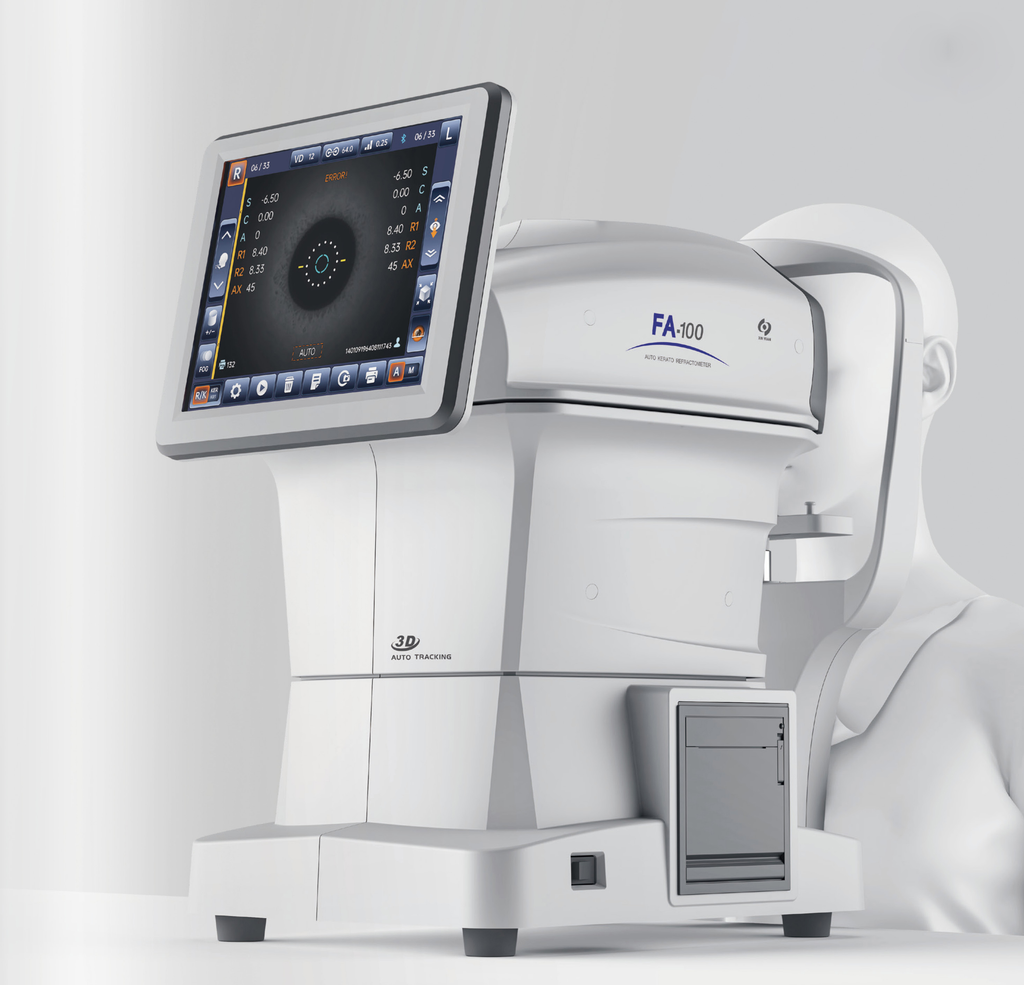

FA-100K Auto Refractor Keratometer
(1) 3D tracking and auto focus
Just rotate to any position, it will automatically focus theeye and get the value.
(2)10.4" tilt and swivel monitor

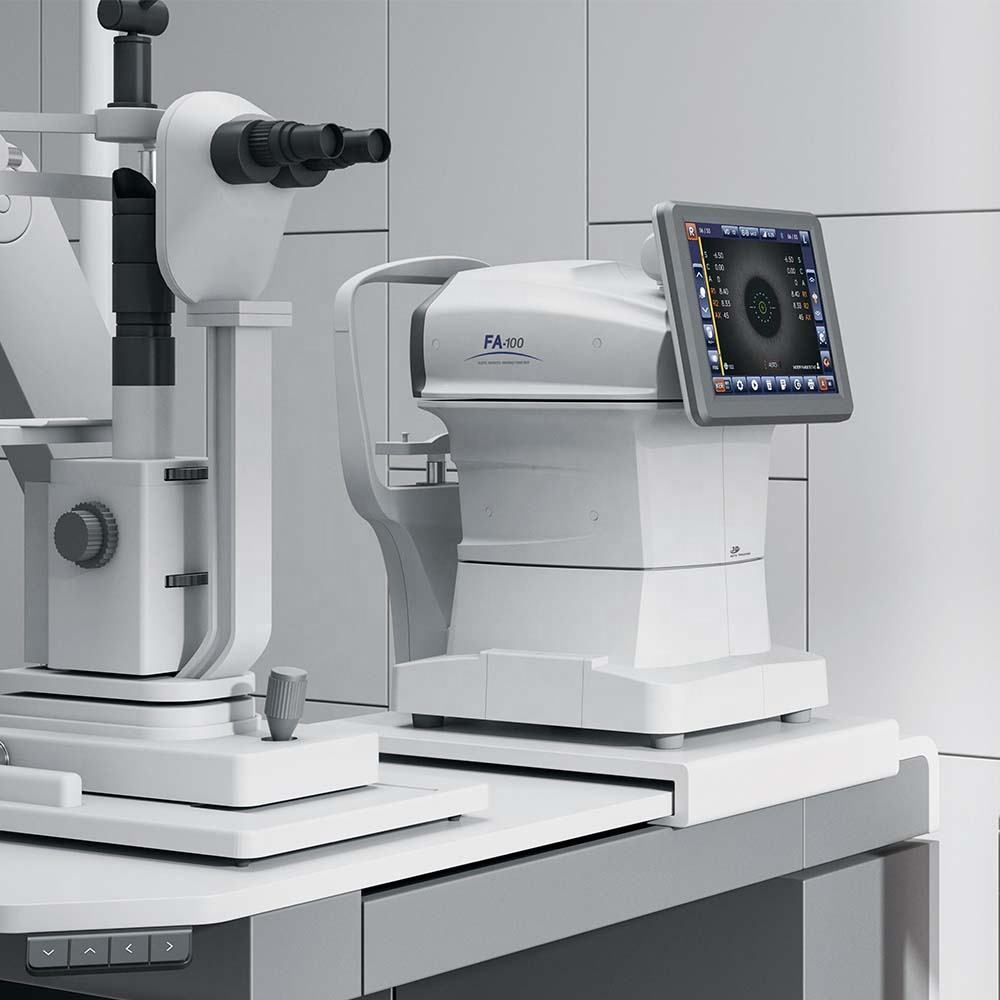

Since the screen can be continuously tilted and swiveled, it can be placed anywhere in an examination area.
Flexible layout and space saving design contribute to improved productivity and efficiency.
(3)Refractive measurement with hexagon prism
With high quality of hexagon prism and highly sensitive CCD, it provides unmatched accuracy and reliability.
(4)Built-in thermal printer
Automatic printing and paper cutting
Parameters:
| Refractometer | Vertex distance | 0mm,12mm,13.75mm,15mm |
| Spherical | -25.00~+20.00D (VD=12) 0.12/0.25D Step | |
| Cylinder | -8.00~+8.00D 0.12/0.25D Step | |
| Axis | 0~180° 1°Step | |
| Cylinder form | -,+,± | |
| Pupil distance | 5~90mm, 1mm Step | |
| Min.pupil size | 2.0mm | |
| Keratometry | Radius of curvature | 5.0~10mm(increment:0.01mm) |
| Corneal power | 33.75~67.50D (when corner equivalent refractive index is 1.337) (increment selectable from 0.12, 0.25D) |
|
| Corneal astigmatism | 0.0~8.00D(increment selectable from 0.12, 0.25D) | |
| Axis | 1~180° (increment:1°) | |
| Corneal diameter | 2.0~15.0mm(increment:1mm) | |
| Others | Chart | Follow-up colorful fogging chart system |
| Memory of data | 10 measure value for each right and left eye | |
| Display | 10.4"LCD/TFT | |
| 57mm thermal printer | ||
| Powersupply | 100-240V50Hz60VA | |
| Serial Interface | USB, RS-232C, bluetooth, WIFI, 4G | |
| Dimension | 445mm(W)x287mm(D)x490mm(H) | |
| Weight | ~20kg |
