Characteristies:

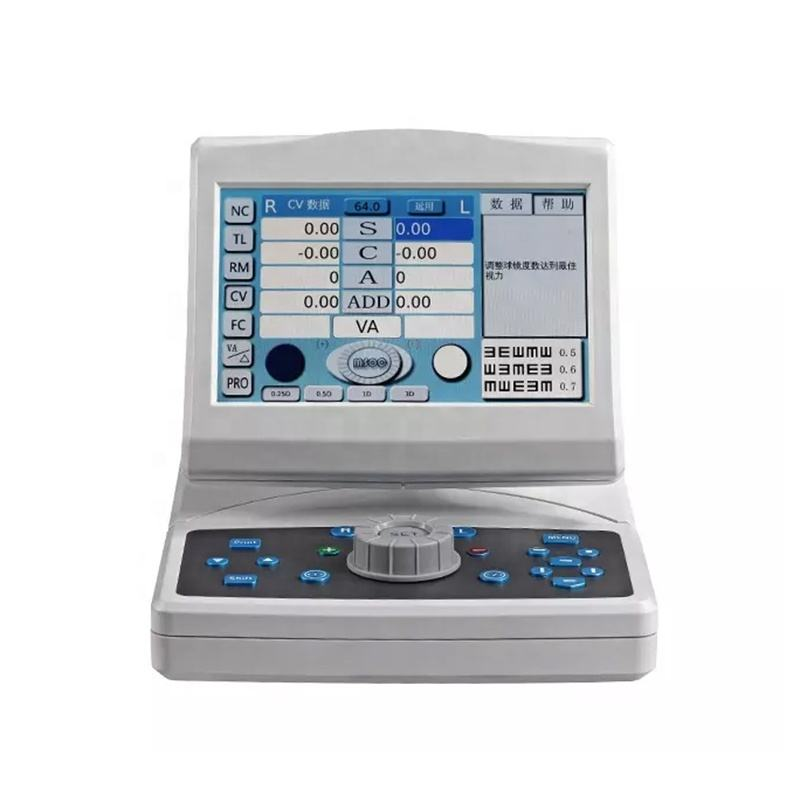

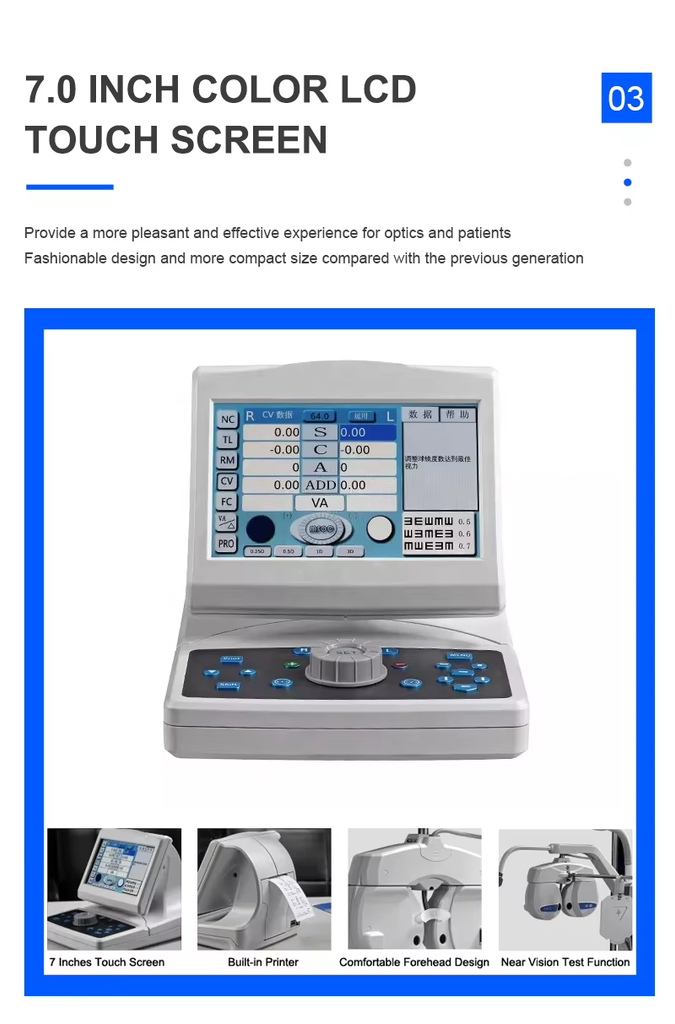

7.0 inch color LCD touch screen
Stylish and compact design
Auto detachment printer
Independent PD adjustment
Built-in LED for near vision illumination

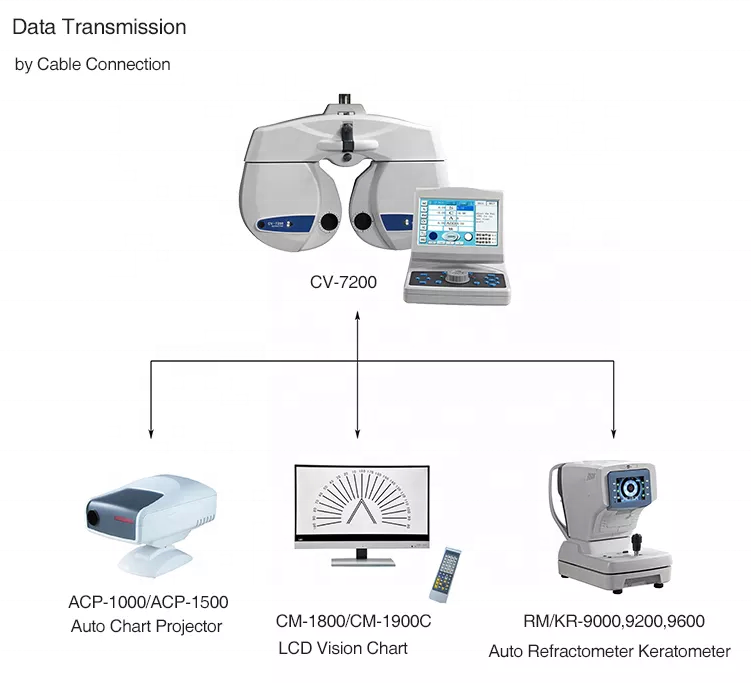

Date transmission with auto refractometer and auto chart projector

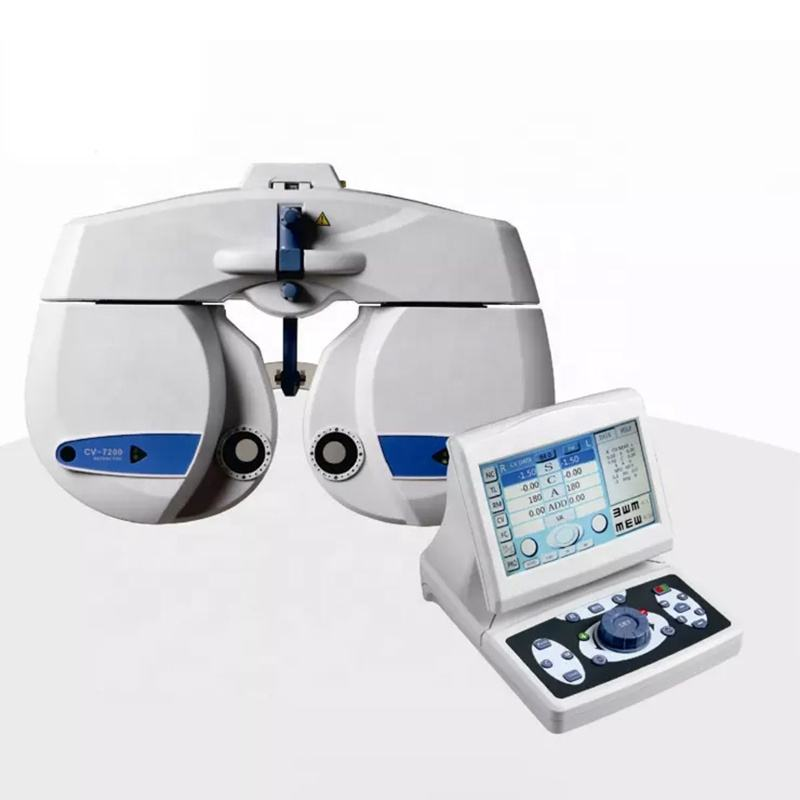

CV-7200 Auto phoropter, AO-7200/AO-7600 Combined table, ARP-1000 Auto chart projector, ARK-9000/ARK-9200/ARK-9600 Auto refractometer can be connected together.
| Sphere | -19.00D~+16.75D 0.25D/0.50D/0.50D/1.00D/3.00D steps |
| Cylinder | -6.00D~+6.00 D 0.25D steps |
| Axis angle | 0~180° 1°/5°steps |
| Pupillary Distance | Distant range: 52~80mm 0.5/1mm steps |
| Close range: 48-76mm 0.5/1mm steps | |
| Rotary Prism | 0~20 0.1 /0.5 /1.0steps |
| Cross Cylinder Lens | ±0.25D |
| Plane Retinoscope | +1.50D(67cm) +2.00D(50cm) |
| Auxiliary Lens | PH Binoculus(1.0mm) |
| RMV,RMH | |
| RL(Right eye),GL(Left eye) | |
| Polaroid(Right eye 135°/45°; Left eye 45°/135°) | |
| Prism(Right 3ΔBU/ 6ΔBU, Left 3ΔBD/ 10ΔBI | |
| Cross Cylinder Lens (±0.50D Axis=90°) | |
| PD Lens | |
| Major Size | 365mm×280mm×110mm |
| Net Weight | 3.8Kg |
| Keyboard Size | 246mm×205mm×185mm |
| Power Box Size | 236mm×126mm×115mm |
| Power Supply | AC 220V 50HZ or AC 110V 60HZ,90W |
