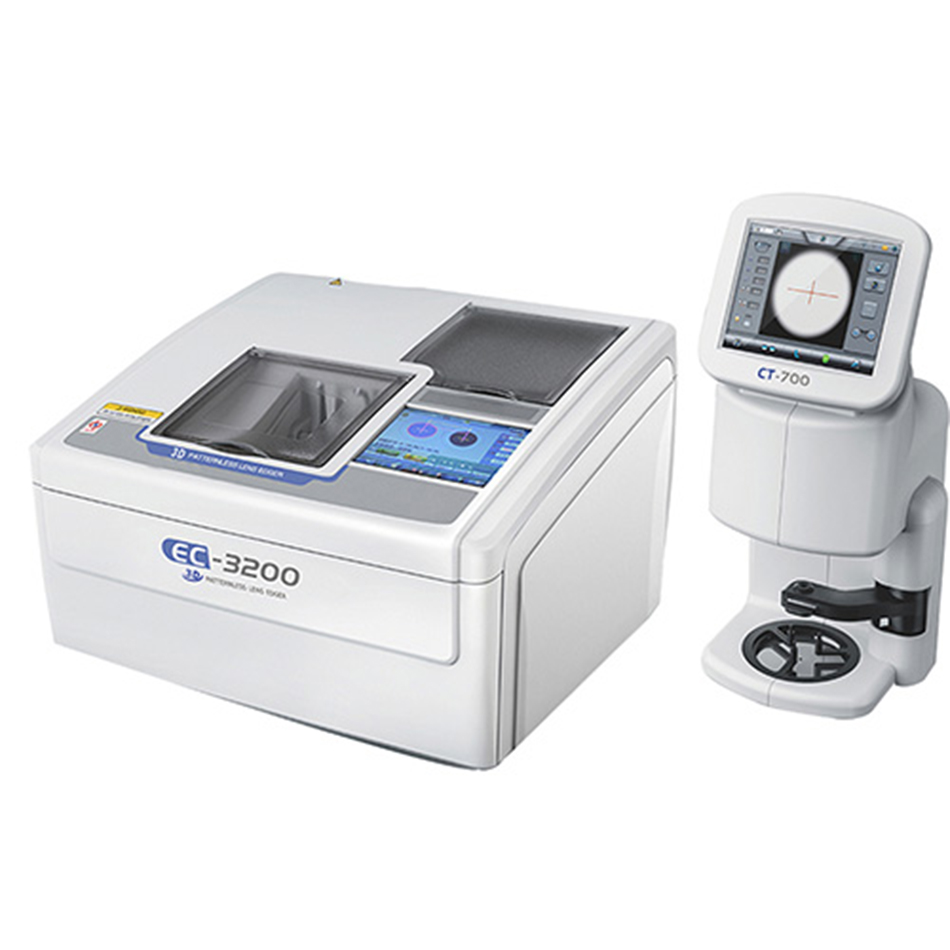

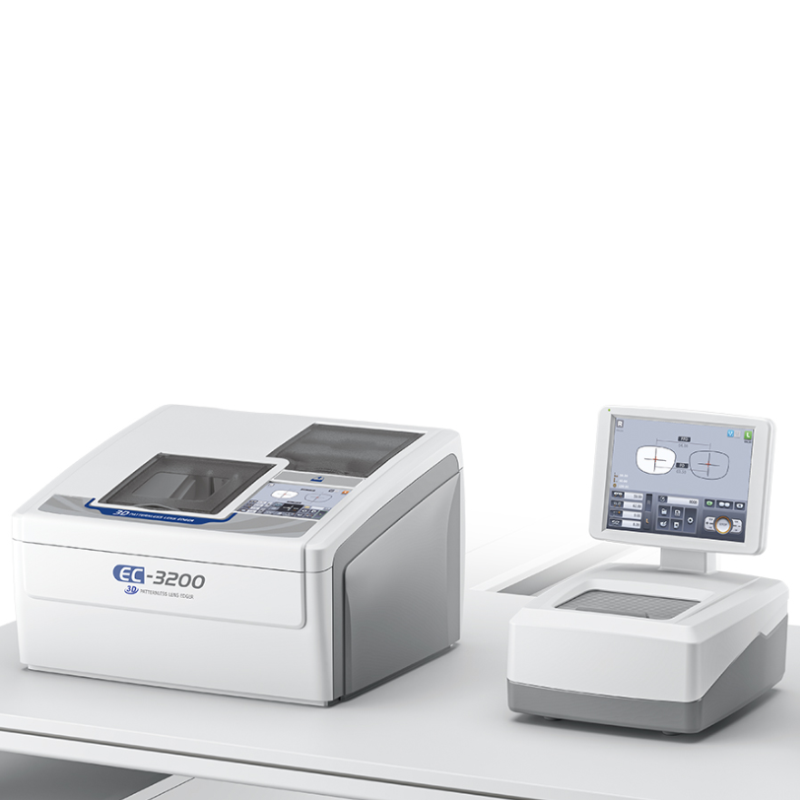

EC-3200 |
||
|
Processing system
|
Beveling, flat edging, grooving, polishing and chamfering |
|
|
Auto mode and guide mode |
||
|
Processing lens |
glass, plastic, polycarbonate |
|
|
Processing pressure |
approx. 4.Skg (fixed) |
|
|
Wheels
|
Roughing wheel for glass lens |
100mm in diameter, 17mm in width |
|
Roughing wheel for plastic lens |
100mm in diameter, 17mm in width |
|
|
Finishing wheel |
100mm in diameter, 23mm in width |
|
|
Polishing wheel (for flat edge) |
100mm in diameter, 12mm in width |
|
|
water supply system |
Pump circulation |
AC 100~230V |
|
Processing accuracy
|
Size accuracy |
±0.05mm |
|
Axis angle |
±1。 |
|
|
Whole system |
Display |
5.6’’LCD/TFT |
|
Dirnensrons |
520mm•485mm•330mm |
|
|
Weight |
-45Kg（only main body) |
|
|
Power supply |
110/220V 50/60HZ |
|
|
Power consumption |
1.2KVA(max. during processing) |
|
|

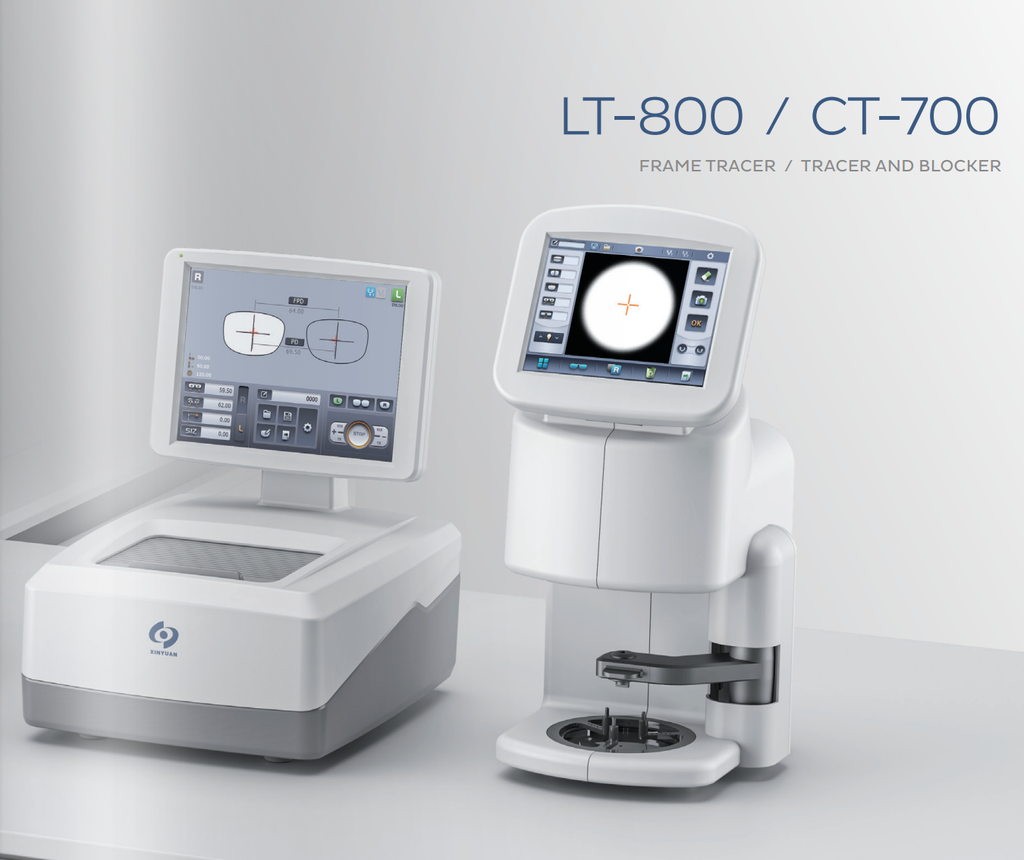

CT-700 |
||
|
Whole system |
Measurement time |
<3S |
|
Measurement accuracy |
<0.1mm |
|
|
Display |
8″LCD/TFT(800•600) |
|
|
Dimensions |
415mm*260mm*236mm |
|
|
Weight |
~9Kg(only main body) |
|
|
Power supply |
110/220V 50/60Hz |
|
|
Power consumption |
25W |
|
